Hydrographische Systeme
Mit der Übernahme der Reson A/S Vertretung in Deutschland im Frühjahr 2012 wurde der Bereich Hydrographie deutlich ausgebaut.
Im April 2013 wurde die Reson A/S ein Teil der Teledyne Marine Group. Hierdurch haben sich für uns aber auch für Sie viele neue Möglichkeiten aufgetan.
Mit Herrn Haker, Herrn Sombrowski und Herrn Albers arbeiten drei sehr erfahrene Hydrographen bzw. Vermesser, mit insgesamt mehr als 50 Jahren praktischer Berufserfahrung, in unserem Team.
Somit können wir Ihnen neben einer professionellen Beratung auch Unterstützung bei der Einrichtung Ihrer Systeme und die Schulung Ihrer Mitarbeiter anbieten.
Gerne entwickeln wir auch Systeme mit Ihnen zusammen, die exakt auf Ihre Bedürfnisse zugeschnitten sind, so dass Sie Ihre Projekte effizient verfolgen können.
SBG Navsight Solution
07.01.2019 [Kategorie: Hydrographische Systeme]Designed to ease Hydrographer’s tasks!

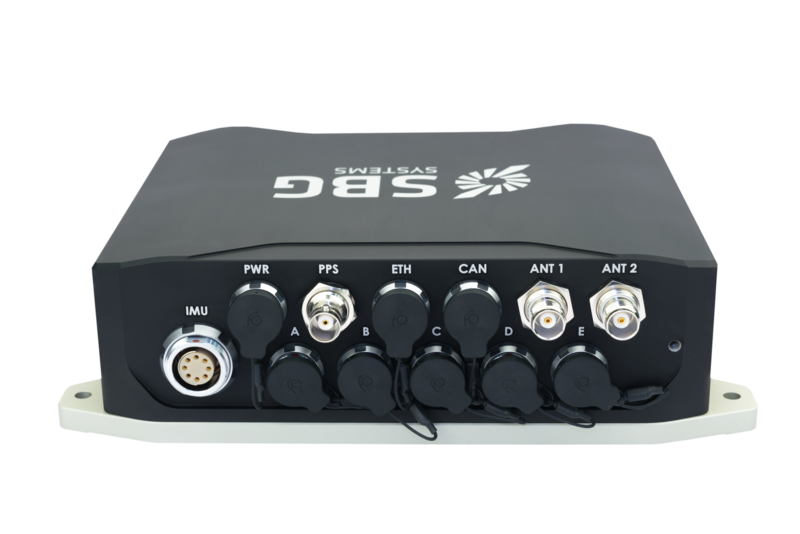

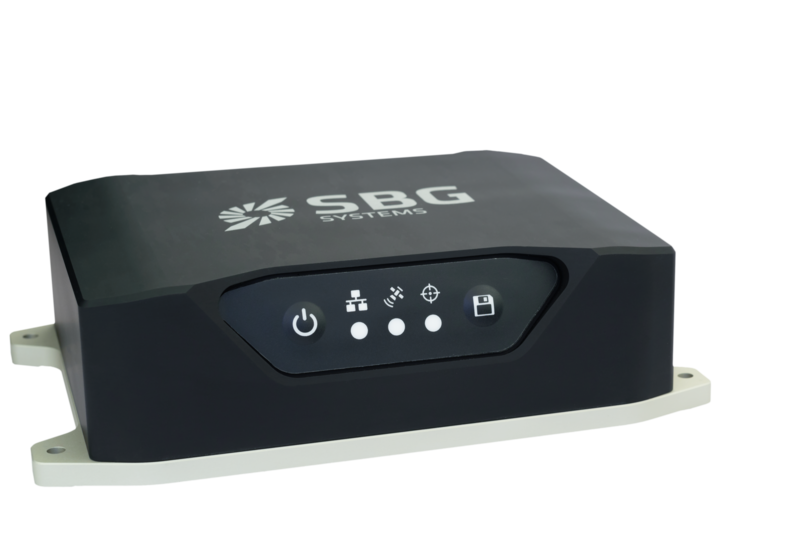

Navsight Marine Solution consists in an Inertial Measurement Unit available at two different performance levels (from shallow to deep water), and connected to Navsight, a rugged processing unit embedding the fusion intelligence, the GNSS receiver when selected, and all connections to external equipment such as echo-sounders, sonar, etc.
Navsight Marine Solution: Built on a Proven Technology
Navsight Marine Solutions is based on 10 years of SBG Systems experience in marine inertial sensing products. The Ekinox and Apogee INS have been a huge success in the field; the company continues its efforts to offer even more performance, simplicity, robustness, and versatility to marine professionals.
Extreme Simplicity, Easy-Peasy Installation

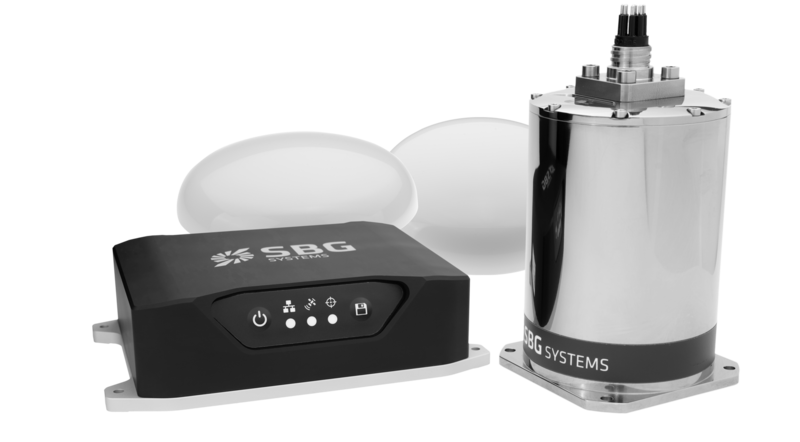

Whether the IMU comes with a surface or a subsea enclosure, they are all lightweight and easy to install. Navsight connects to any computer, with no software installation. Once connected through Ethernet, the web interface guides the user to configure the solution. A 3D view of the boat shows the entered parameters so that the user can check in real time the installation. Navsight allows quick installation and initialization thanks to new mechanical calibration module. The embedded filtering controls and validates lever arms and antenna alignment during this procedure.
Full Solution for Surveying in All Sea Conditions
Navsight Marine Solution provides high performance motion and navigation data as well as a real-time heave accurate to 5 cm, which automatically adjusts to the wave frequency. To allow surveying when wave frequencies are large or complex, Navsight comes with a delayed heave feature resulting in a heave accurate to up to 2 cm computed in real-time with a little delay. If higher performance is required, the surveyor can count on SBG INS/GNSS post-processing software named Qinertia. By processing inertial and GNSS raw data forward and backward, Qinertia greatly increases accuracy especially during GNSS outages; it also fixes set up mistakes, etc.
Available as MRU, with embedded GNSS, or using yours
Highly versatile, Navsight comes as a Motion Reference Unit (MRU), providing roll, pitch, and heave or as a full Navigation Solution with embedded tri-frequency GNSS receiver, or using an external one. Fusing inertial data with satellite position in real-time, Navsight INS offers a continuous position in all conditions, such as surveying under a bridge, or during a GNSS outages due to coastal infrastructures (buildings, harbor cranes, etc.)
The Navsight Marine Solution supports RTK and every Precise Point Positioning service (Marinestar, TerraStar, etc.). It is compatible with the main hydrographic software such as Hypack, QINSy, or Teledyne PDS for seamless integration into existing workflows
