Hydrographische Systeme

Mit der Übernahme der Reson A/S Vertretung in Deutschland im Frühjahr 2012 wurde der Bereich Hydrographie deutlich ausgebaut.

Im April 2013 wurde die Reson A/S ein Teil der Teledyne Marine Group. Hierdurch haben sich für uns aber auch für Sie viele neue Möglichkeiten aufgetan.

Mit Herrn Brunken, Herrn Schmidt und Herrn Hämmerling arbeiten drei sehr erfahrene Hydrographen bzw. Vermesser, mit insgesamt mehr als 25 Jahren praktischer Berufserfahrung, in unserem Team.

Somit können wir Ihnen neben einer professionellen Beratung auch Unterstützung bei der Einrichtung Ihrer Systeme und die Schulung Ihrer Mitarbeiter anbieten.

Gerne entwickeln wir auch Systeme mit Ihnen zusammen, die exakt auf Ihre Bedürfnisse zugeschnitten sind, so dass Sie Ihre Projekte effizient verfolgen können.

Ellipse Series 3rd Generation

26.06.2020 [Kategorie: Hydrographische Systeme]

High-end functionalities and dual frequency RTK


Ellipse line of miniature inertial sensors renewal with high-end functionalities and dual frequency RTK

SBG Systems is the only manufacturer of miniature to high accuracy inertial navigation systems mastering the Inertial Measurement Unit design, calibration, and filtering. All improvements made in the high-end lines could naturally benefit to the Ellipse miniature line.

High-end INS Technology in the Smallest Form Factor

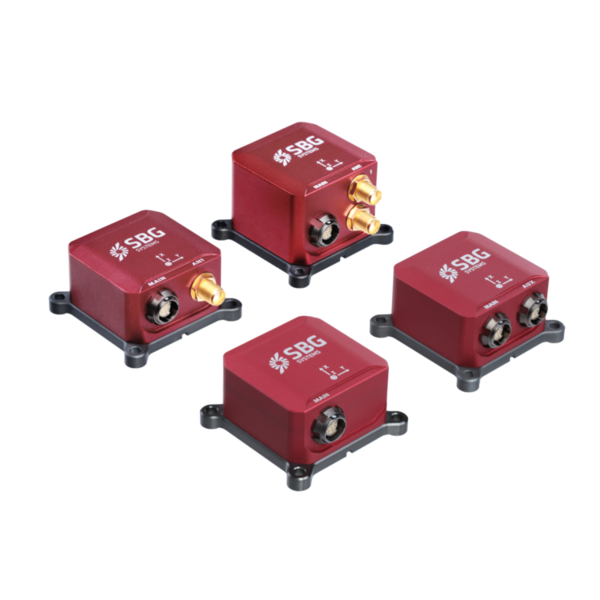

The company is proud to present the third generation of its popular range of miniature inertial sensors called the Ellipse Series. The line is composed of four models: the Ellipse-A  is a motion sensor, the Ellipse-E provides navigation with an external GNSS receiver, the Ellipse-N is a single antenna RTK GNSS/INS and the Ellipse-D is a dual-antenna RTK GNSS/INS. With its new 64-bit architecture, the Ellipse Series 3rd generation enables the use of high precision algorithms and technology used in high-end inertial systems such as rejection filters, FIR filtering, etc. All Ellipse miniature INS are now RTK-enabled without extra cost and output raw data for post-processing. All these features are made possible in small and robust aluminum enclosure box version, but also in the 17-gram OEM version providing unmatched performance/size ratio.

Smallest Dual-frequency, Dual-antenna RTK GNSS/INS

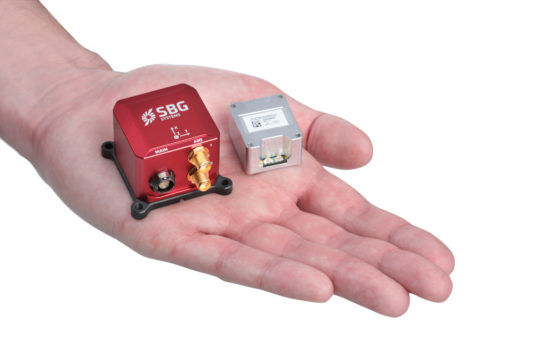

Whether you choose the box or the OEM version, get the best performance/price/size ratio with the new Ellipse-D. With its dual frequency RTK GNSS receiver, the Ellipse-D provides a centimetric position. Dual frequency provides a way more robust heading and position computation than single frequency receivers. It allows unmatched performance in attitude (0.05°) and in heading (0.2°). With its dual-antenna capability, Ellipse-D provides precise heading in a few seconds, in all dynamic conditions, and even in challenging GNSS conditions. It is also immune to magnetic disturbances. Ellipse-D is quad-constellation, meaning it could use simultaneously satellites from GPS, GLONASS, BEIDOU, and GALILEO for more signal availability in challenging navigation conditions.

The Most Reliable Miniature Inertial Sensors

Robustness and reliability has always been at the core of the Ellipse Series. Designed with high quality industrial-grade components, Ellipse inertial sensors are highly tested and calibrated in dynamic and temperature for a consistent and repeatable behavior in all conditions. Highly trustworthy, the Ellipse Series is the only miniature inertial sensors coming with a two-year warranty.
