Hydrographische Systeme
Mit der Übernahme der Reson A/S Vertretung in Deutschland im Frühjahr 2012 wurde der Bereich Hydrographie deutlich ausgebaut.
Im April 2013 wurde die Reson A/S ein Teil der Teledyne Marine Group. Hierdurch haben sich für uns aber auch für Sie viele neue Möglichkeiten aufgetan.
Mit Herrn Haker, Herrn Sombrowski und Herrn Albers arbeiten drei sehr erfahrene Hydrographen bzw. Vermesser, mit insgesamt mehr als 50 Jahren praktischer Berufserfahrung, in unserem Team.
Somit können wir Ihnen neben einer professionellen Beratung auch Unterstützung bei der Einrichtung Ihrer Systeme und die Schulung Ihrer Mitarbeiter anbieten.
Gerne entwickeln wir auch Systeme mit Ihnen zusammen, die exakt auf Ihre Bedürfnisse zugeschnitten sind, so dass Sie Ihre Projekte effizient verfolgen können.
3rd integrated dual head multibeam
04.04.2017 [Kategorie: Hydrographische Systeme]Von: Jörg BrunkenHamburg Port Authority (HPA) requires a new high-end product
Conducting around 900 surveys per year in the port of Hamburg, Hamburg Port Authority (HPA) requires high-end products for their multi-sensor systems and survey vessels.

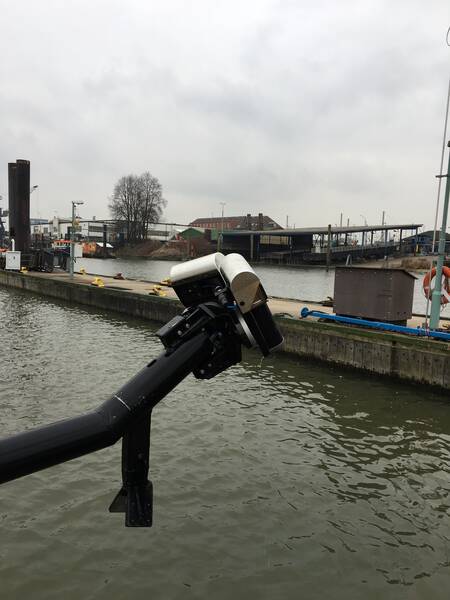

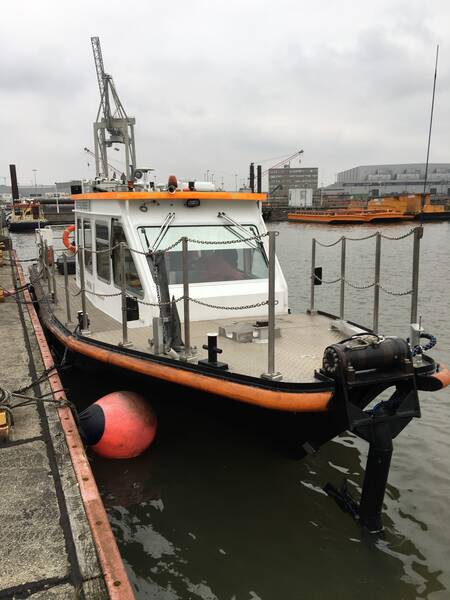

The vessel ‘Deepenschriewer IV’ is the smallest survey vessel of HPA and intended to carry out multibeam surveys for depth control and documenting in shallow water areas. For this purpose, MBT, MacArtney Germany, has effected supply, installation, and setting-to-work of a dual head multibeam echo sounder system suitable for hydrographic survey applications.
This solution comprises the following products: high-resolution multibeam echo sounder Teledyne RESON SeaBat® T20-R, a Valeport SWiFT sound velocity profiler, and a Valeport UltraSV.
Scope of supply

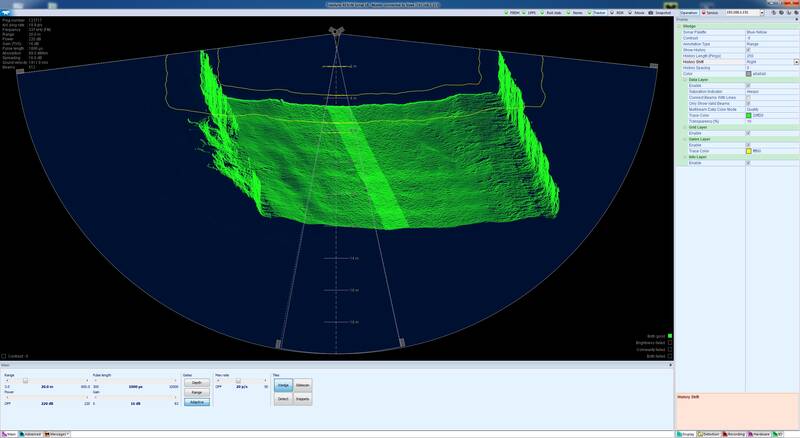

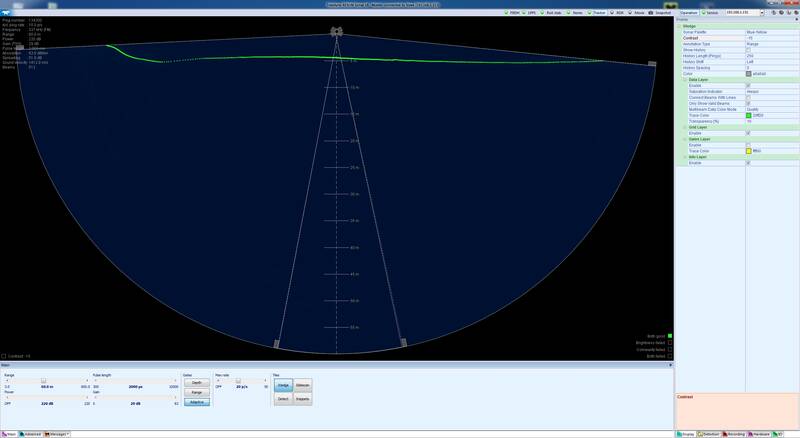

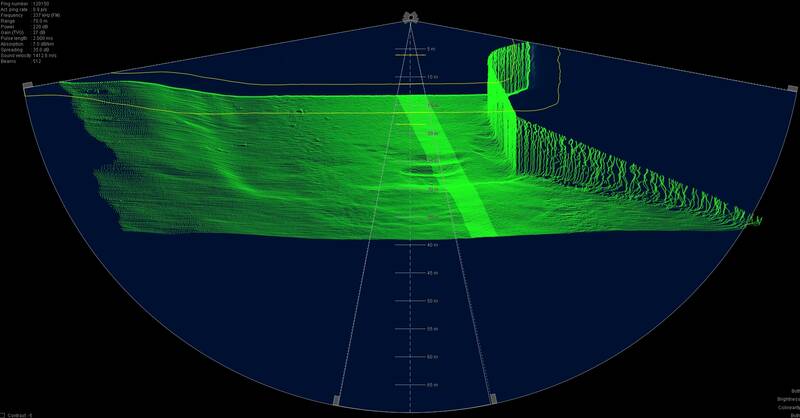

The dual head Teledyne RESON SeaBat® T20-R multibeam echo sounder configuration provides uncompro-mising survey data in a highly compact package designed for small vessel use. It is an all-in-one, fully flexible and fully integrated survey system allowing for fast mobilisation, minimal interfacing and low space require-ments. It is fully frequency agile from 190 to 420 kHz which ensures improved swath performance and reduced survey time.
Representing a seamless workflow, the Valeport SWiFT sound velocity profiler features rechargeable battery and LED status indicators for easy and fast downloading, reviewing, and translation of data into common SVP formats wirelessly. The Valeport UltraSV offers an advanced and exchangeable sound velocity sensor and is ultra-fast, ultra-compact, and ultra-dependable. The scope also consists of RTK GNSS and inertial sensor as well as a QINSy hydrographic data acquisition, navigation, and processing software package.
Ultimate flexibility
The units are intended for coastal, harbour, and inland hydrographic survey use. Featuring superior acoustic quality and high accuracy, this dual head survey system enables easy and quick downloading and sharing of data relevant in relation to hydrographic surveying.
Quality testing to meet the most demanding standards ensures optimum performance, thus allowing for good swaths in very shallow water as well as comprehensive surveys in big areas in a short time, specially in shallow areas, and thorough testing during dredging operations.
MBT, MacArtney Germany, provides customer-specific solutions, installation, and training in hard- and software. Our core competences comprise oceanographic, geophysical, and hydrographic measuring instruments and systems. So far, MBT, MacArtney Germany, has also equipped ‘Deepenschriewer II’ and the ‘Deepenschriewer III’ with a high resolution dual head multibeam echosounder. The ‘Deepenschriewer II’ uses a SeaBat® T20-P and the ‘Deepenschriewer III’ a T50-P to fulfill the high demands of HPA.
